The 3DMakerPro Lynx is a versatile handheld 3D scanner for medium to large objects. Covering a 250mm to 2m scanning range with 0.10mm accuracy at 10fps, the Lynx sits between the small-object precision of the Seal range and the specialist large-format capability of the Moose — making it the most broadly applicable scanner in the 3DMakerPro lineup for general product design, reverse engineering, and prototyping work.

Key Specifications

Accuracy	Up to 0.10 mm
Resolution	Up to 0.30 mm
Scanning speed	Up to 10 frames per second
Object size range	250 mm – 2,000 mm
Scanning technology	Advanced optical structured light
Surface compatibility	Dark and reflective surfaces without spray coating
Tracking	Markerless intelligent tracking + optional marker mode
Software	JMStudio (included)
Export formats	OBJ, STL, PLY, ASC
Connection	USB

250mm to 2m — The Most Versatile Scanning Range

Most real-world objects that designers, engineers, and makers need to digitise fall within the Lynx's 250mm–2m range. A motorcycle fuel tank, an office chair, a custom tool, a mannequin head, a car door trim panel — all sit comfortably within range. The Lynx handles these without the operator needing to think carefully about whether the object is too big or too small for the scanner, making it the most practical choice for workshops and design studios with mixed scanning workloads.

Markerless Tracking

The Lynx uses intelligent feature-based tracking to maintain its position relative to the object without physical markers. For objects with sufficient surface geometry — most mechanical parts, consumer products, and organic shapes — markerless scanning is faster and cleaner, eliminating the time spent placing and removing adhesive markers and the risk of markers obscuring important surface features. An optional marker mode is available for scanning featureless surfaces like flat panels.

JMStudio Software

JMStudio processes scan data in real time and provides guided alignment, automatic hole filling, mesh smoothing, and export in OBJ, STL, and PLY formats. Files integrate directly with Fusion 360, SolidWorks, Blender, and 3D printing slicers without additional conversion steps.

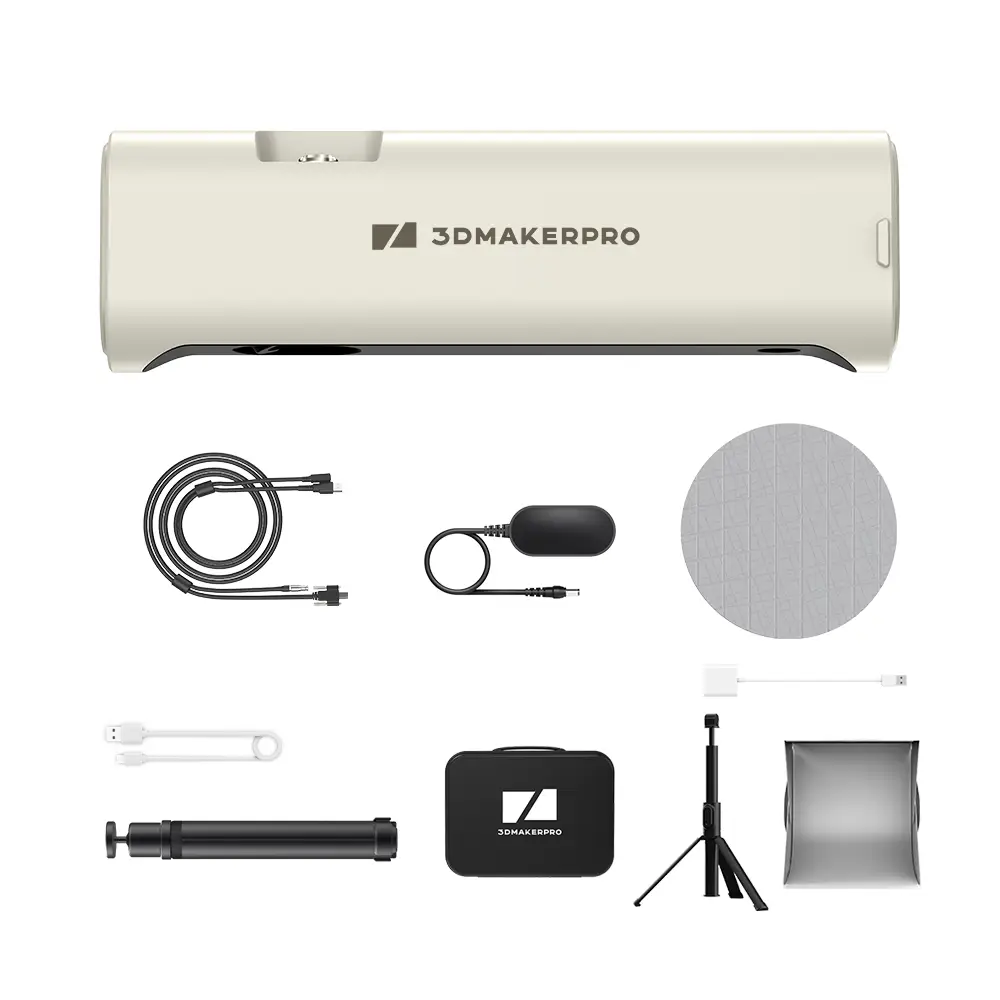

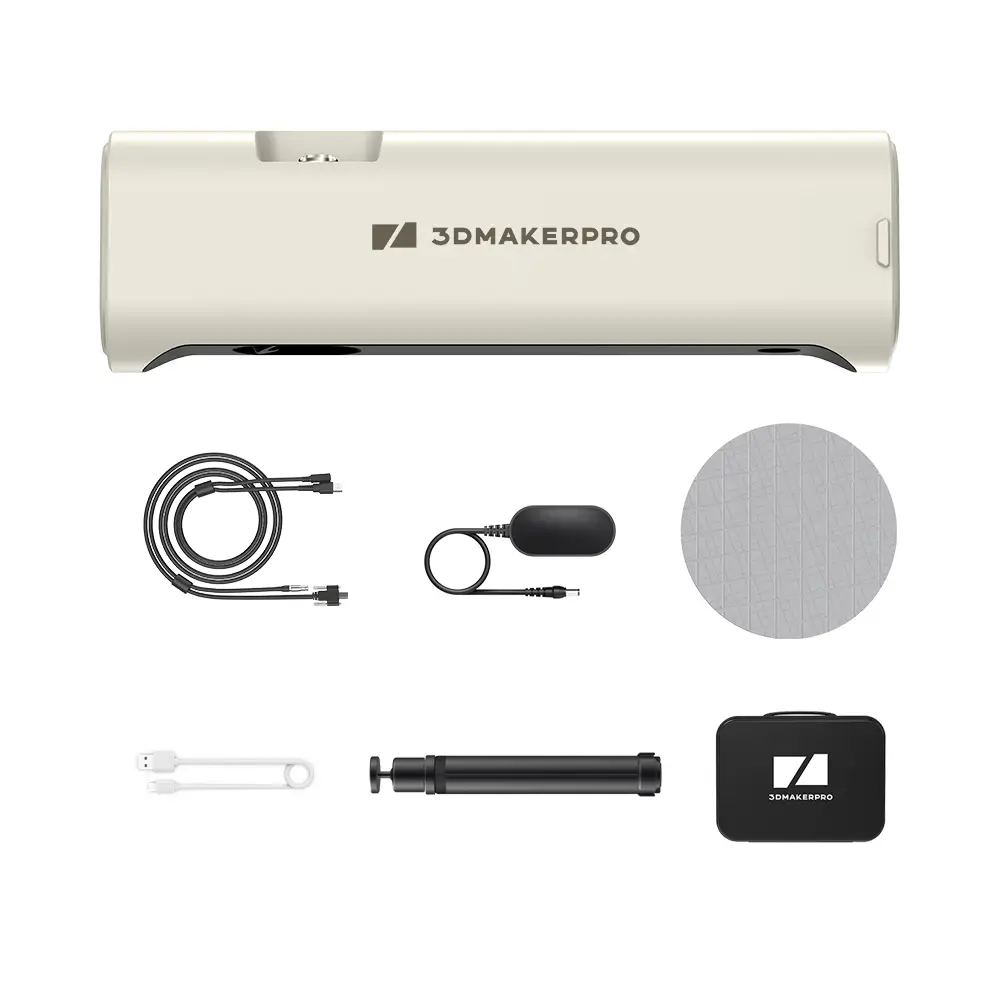

What's in the Box

• 3DMakerPro Lynx 3D scanner
• USB cable
• Calibration board
• Carrying case
• Quick start guide
• JMStudio software licence

Who It's For

• Product designers and engineers needing a general-purpose scanner covering a broad range of object sizes
• Automotive workshops digitising medium to large components — bumpers, seats, interior panels
• Prototyping studios requiring fast, accurate scans of physical prototypes for CAD comparison
• Artists and prop-makers digitising medium-scale physical work
• Education and research institutions running diverse 3D scanning programmes

Available from Eolas Prints

Eolas Prints is an official 3DMakerPro distributor based in Cantabria, Spain, serving customers across Europe. EU warranty and support included.
