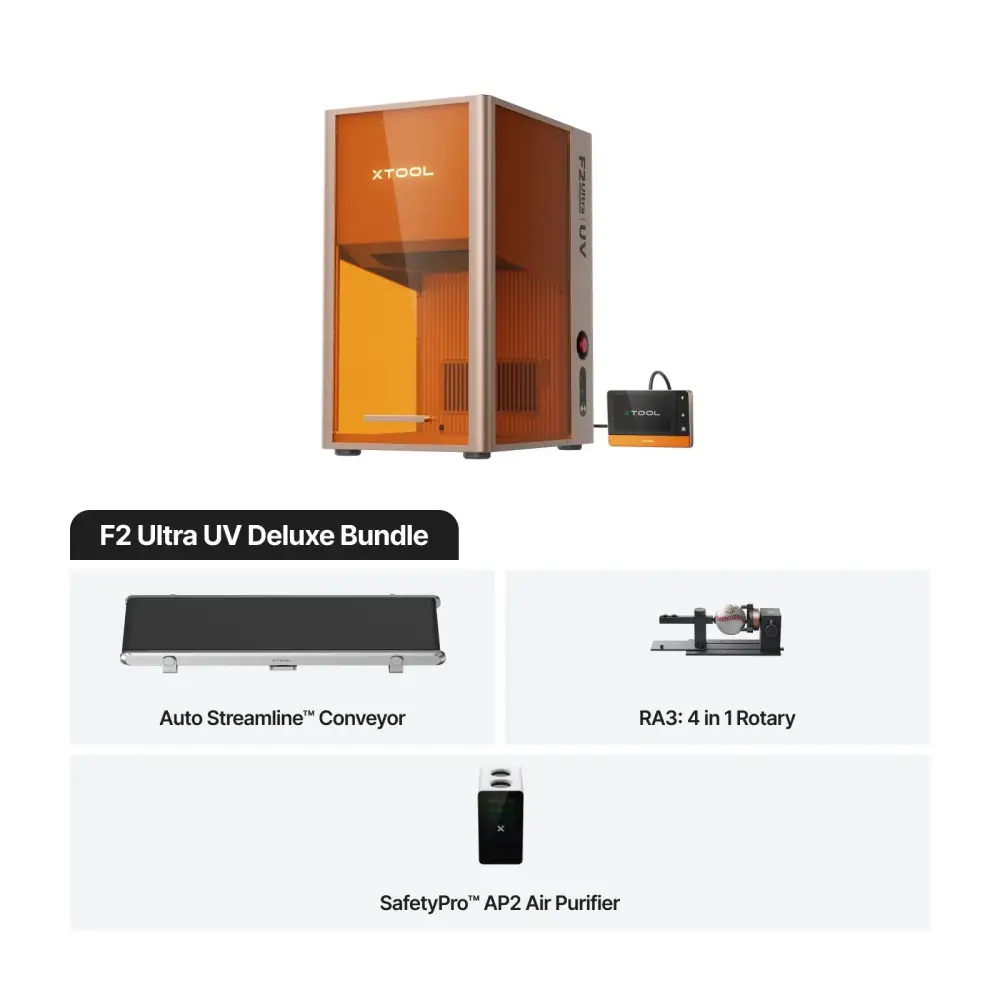

The xTool F2 Ultra UV is the first consumer-grade desktop laser capable of 3D engraving inside glass and crystal. Its 5W UV laser (355nm wavelength) operates via cold-processing — breaking molecular bonds with high-energy photons rather than heat. This makes it the correct tool for materials that thermal lasers damage: clear glass, crystal, heat-sensitive plastics, and precision-coated surfaces. For glassware personalisation, crystal award production, and ceramic marking at scale, the F2 Ultra UV covers a category of work that no diode, fiber, or CO2 laser handles reliably.

Key Specifications

Laser type	5W UV (355 nm)
Engraving speed	Up to 15,000 mm/s
Work area	Galvo system — compact desktop footprint

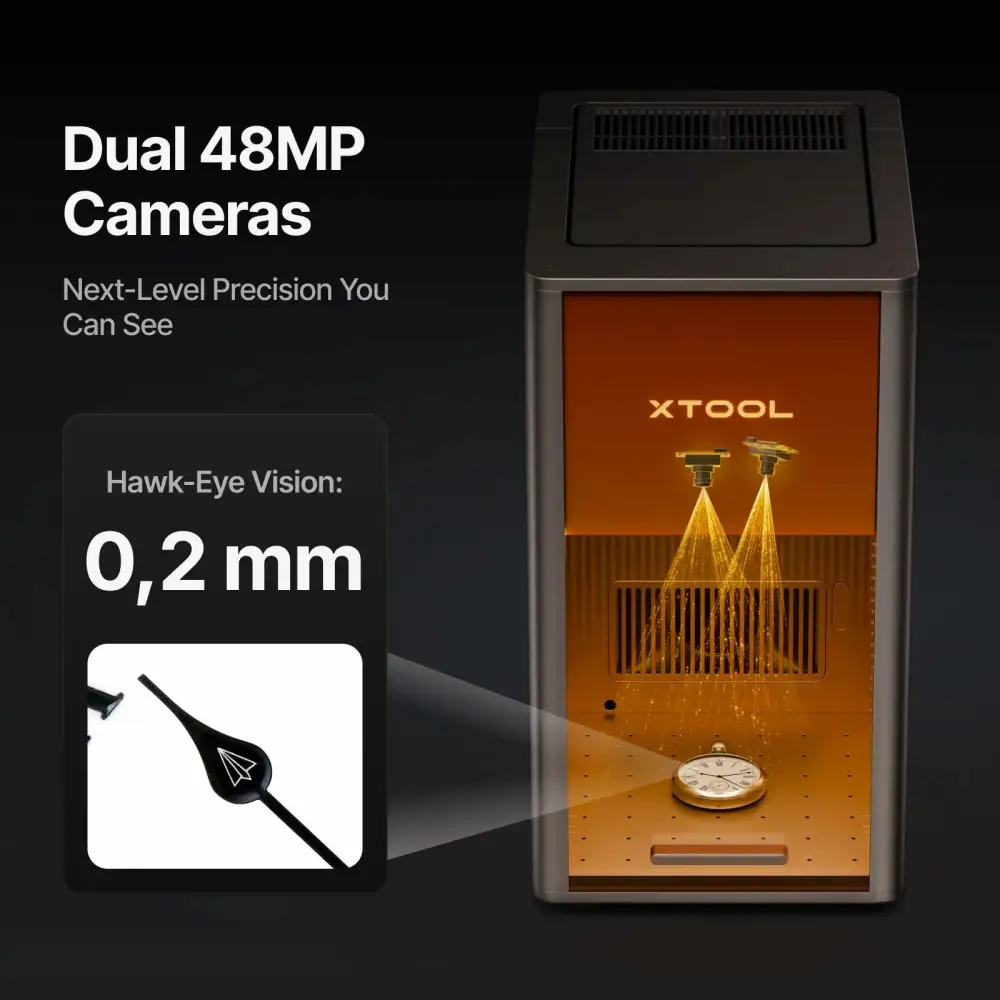

Camera system	Dual 48MP — 0.2mm positioning accuracy
Engraving modes	3D inner engraving, surface engraving, embossing, rotary

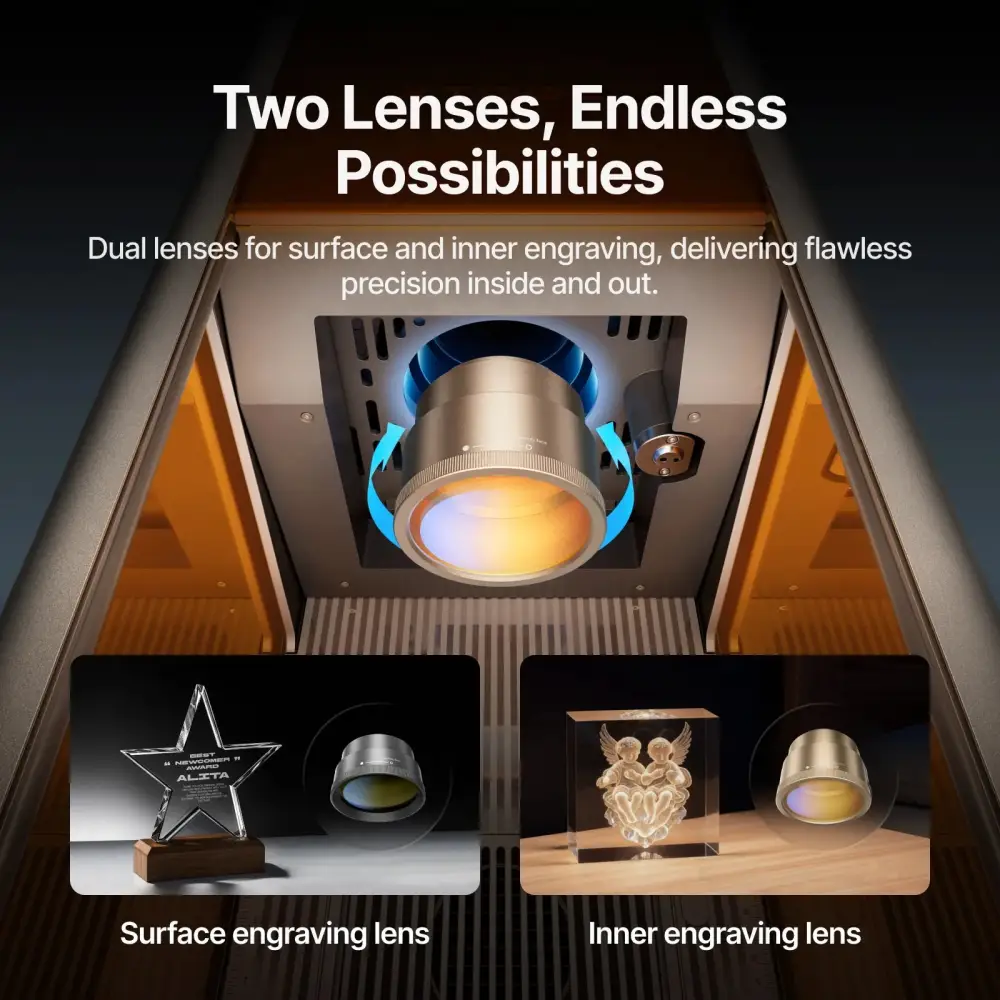

Field lenses	2 switchable — inner engraving + surface engraving
Compatible materials	Glass, crystal, acrylic, ceramics, silicone, plastics, leather, wood
Software	xTool Creative Space (AI-powered 3D generation)
Connectivity	USB, Wi-Fi

3D Inner Glass Engraving

The F2 Ultra UV focuses the UV laser beam to a precise point inside a transparent glass or crystal object — not on its surface. By positioning this focal point in three dimensions and moving it systematically, the machine creates patterns, text, and 3D models suspended inside the material. The technique, previously limited to industrial laser systems, produces the crystal trophies, personalised glass blocks, and decorative crystal balls sold as premium gifts and corporate awards. From a desktop machine, this capability opens a product category that requires no special glass treatment, coating, or surface preparation.

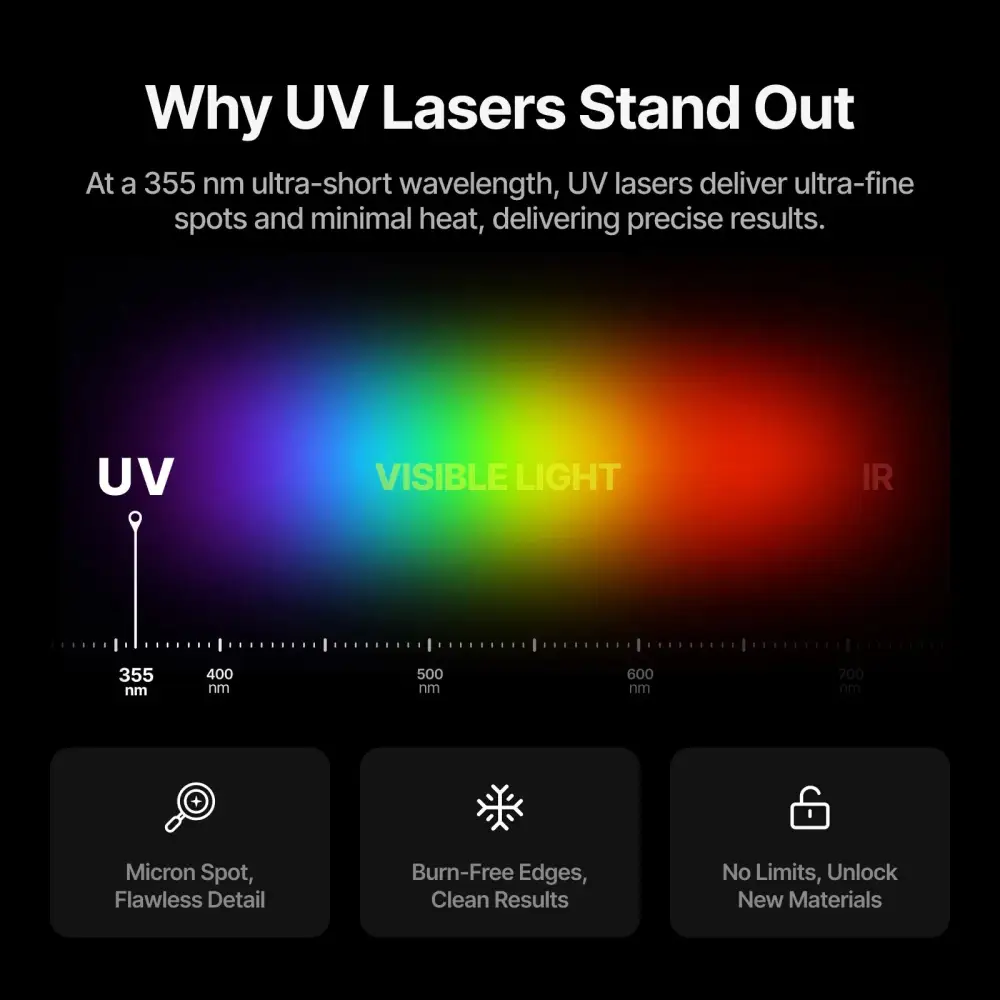

Cold Processing — Why It Matters

Thermal lasers (diode, CO2, fiber) generate heat as a byproduct of the marking process. On glass and crystal, heat causes micro-fractures. On heat-sensitive plastics, it causes melting and discolouration. On precision-coated surfaces, it causes coating bubbling or thermal spread beyond the mark boundary.

The UV laser's cold processing mechanism removes material photochemically rather than thermally — the result on glass is clean fracture-free marks, and on sensitive materials, burn-free edges with no residue or cleanup required.

Material Compatibility

• Glass and crystal — surface engraving and 3D inner engraving
• Ceramics and porcelain — logos, patterns, serial numbers
• Acrylic — clean, burn-free edges on clear and coloured stock
• Silicone and technical plastics — marking without heat damage
• Leather — ultra-fine detail with zero fumes from burning
• PCB and electronics — component marking and prototyping

Who It's For

• Glassware and barware personalisation businesses — whisky glasses, wine bottles, beer mugs
• Crystal trophy and corporate award manufacturers — 3D inner engraving for premium gifts
• Jewellery studios engraving on glass and semi-precious stone
• Industrial part marking on heat-sensitive electronics and precision plastics
• Ceramic and porcelain studios adding permanent marks to fired pieces

Available from Eolas Prints

Eolas Prints is an authorised xTool reseller based in Cantabria, Spain, serving customers across Europe. EU warranty and support included.
