xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver
The xTool F2 is a portable dual laser engraver combining a 15W diode laser and a 5W infrared laser in a compact galvo system. The combination covers the two most common laser processing needs in one machine: the diode laser handles organic materials (wood, leather, acrylic, fabric), while the infrared laser marks metals, glass, ceramics, and heat-sensitive plastics. At 6,000 mm/s engraving speed, the F2 processes batches fast enough for small business production use.
Key Specifications
| Diode laser | 15W (455 nm blue) |
| Infrared laser | 5W (1064 nm IR) |
| Engraving speed | Up to 6,000 mm/s |
| Work area | 400 × 400 mm |
| Accuracy | 0.001 mm |
| Camera | Built-in — for positioning and preview |

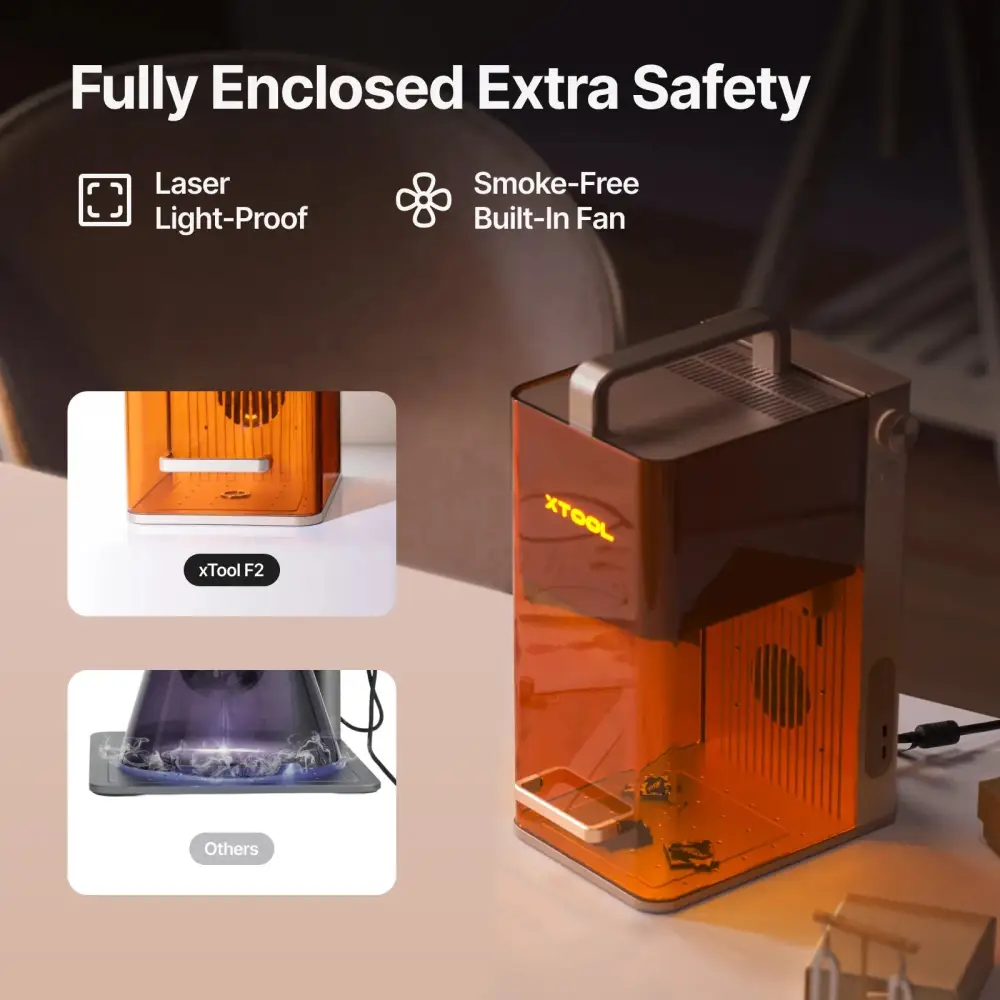

| Enclosure | Fully enclosed — Class 1 safety design |
| Weight | Compact — portable for on-site use |
| Connectivity | USB, Wi-Fi |
| Software | xTool Creative Space |
15W Diode Laser
The 15W blue diode laser (455nm) cuts and engraves organic materials:
- Cutting: Basswood up to 15mm, MDF up to 8mm, acrylic up to 10mm, leather, paper, cardboard, fabric
- Engraving: Wood, bamboo, leather, acrylic, cork, rubber, anodised aluminium, painted surfaces
5W Infrared Laser
The 5W IR laser (1064nm) marks materials the diode laser cannot:
- Stainless steel and aluminium (including uncoated)
- Glass and crystal
- Ceramic and porcelain tiles
- Coated metals
- Technical plastics and silicone
- Stone and marble
Switching between lasers is done in software — no module changes required.
400 × 400 mm Work Area
With a 400 × 400mm work area, the F2 handles larger items than the compact F1 (115 × 115mm) and the F1 Ultra (115 × 115mm). Full A3 sheets, larger leather pieces, and long format engravings fit within the working area without repositioning.
Who It's For
- Small businesses that need both diode and IR capability on a larger work surface
- Personalisation studios engraving on metals, glass, and organic materials in the same workflow
- Makers wanting a mid-range galvo machine between the compact F1 and the high-power F1 Ultra
- On-site engraving operations that need portability combined with a larger work area
Available from Eolas Prints
Eolas Prints is an authorised xTool reseller based in Cantabria, Spain, serving customers across Europe. EU warranty and support included.
